Neural Video Compression with Diverse Contexts¶

The idea behind a video codec is to capture the context of the frames, and by doing so reduce the redundancy to save bits. This is done by tradicional codecs by using code modes, where each mode can capture a specific kind of context. Different modes are then developed and processed in order to select the best one for that specific sequence. This codes are handmade and take a lot of computational time. But they are also directly related to bit-saving ratios.

Contexts here resembles the feature kernels or filter maps of convolutional networks. There is a lot of different kernels where each kind can capture different structures.

The idea of the authors is to improve contexts of Neural Video Compression (NVC) algorithms while keeping computational cost at low. They propose improvements both in temporal space as in spatial space.

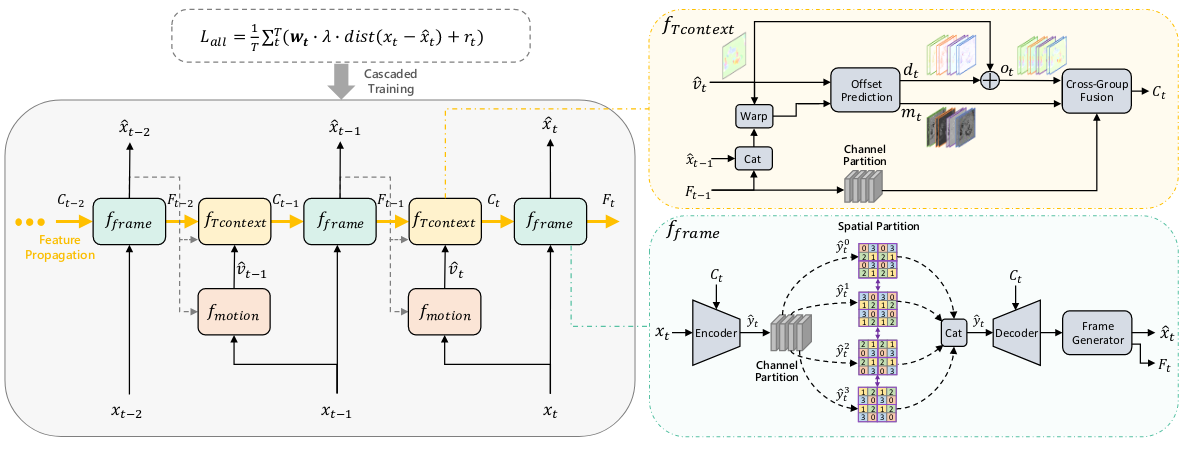

docs/img/dcvc-dc-framework.png

Nomenclature:

$xt$: input frame
$xt$ hat: reconstructed frame
$Ct$: learned motion aligned temporal context
$Ft$: propagated but unprocessed feature map containing many high-frequency details
$vt$ hat: decoded motion vector
$yt$ hat: quantized latent representation
warp: motion compensation with frame and motion vector

Key aspects¶

Hierarchical quality patterns¶

Encode different frames with different quantization parameters, saving it on different layers of the hierarchical structure. When predicting the current frame context, uses these reference frames for motion estimation. The new frame with motion compensation is also of high quality, and as such leads to a smaller prediction error. By using the previous frame with these long-range reference frames, more diverse contexts are generated. This is very helpful to alleviate the error propagation problem that many other NVCs suffer from.

Group-based Offset Diversity¶

Quadtree Partition-Based Entropy Coding¶

Workflow¶

The coding pipeline contains three core steps: $fmotion$, $fTcontext$, and $fframe$.

Fmotion¶

$fmotion$ receives the current frame + the previous reconstructed frame. It uses optical flow network it to estimate the motion vector (MV) $v_t$, which is encoded and decoded as $v_t$ hat.

FTcontext¶

$fTcontext$ receives the decoded $v_t$hat with the propagated feature $Ft-1$ from the previous frame. It then extracts the motion-aligned temporal context feature $Ct$.

It uses hierarchical quality patterns to train weights and assign it to each quality reference frame on the hierarchy. Adjusting these weights, it then learns what is the best one to move up or down the stack.

By referencing both the nearest frame and the farther high-quality frame, it can then achieve top performance.

Using the motion vector and the feature map of previous frame, Ftcontext predicts different offsets of this motion in order to better determine where the next motion will be.

It stores the different motion from previous frames to better predict the current frame motion

Fframe¶

$fframe$ encodes $xt$ into quantized latent representation by using $Ct$ to generate $yt$ hat. Then, By using Channel Partition, it uses $Ct$ to decode $yt$ hat, feeding it to a frame generator to produce $xt$ hat and $Ft$.

Quad-tree Based Channel Partition is responsible for splitting the encoded frame into patches. These patches are then used to estimate the probability mass function (PMF) for arithmetic coding. By coding PMF on multiple steps, each partition can be used to guide the coding on each step, and as such can represent more diverse and robust contexts for spatial compression.
