Swin-Unet: Unet-like Pure Transformer for Medical Image Segmentation

Motivated by Swin Transformer's success, the authors propose Swin-Unet to leverage the power of Transformer for 2D medical image segmentation. Swin-Unet is a pure Transformer-based U-shaped architecture that consists of encoder, bottleneck, decoder and skip connections.

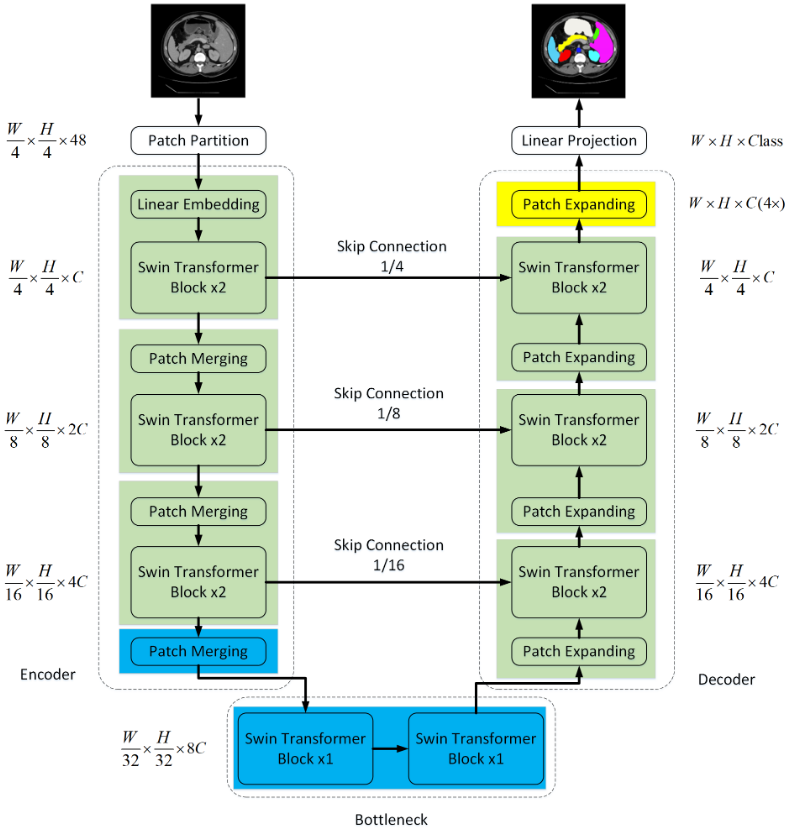

Swin-Unet consists of encoder, bottleneck, decoder and skip connections. The basic unit of Swin-Unet is the Swin Transformer block. The input image is split into patches of fixed size, later embedded using a linear embedding layer. These transformed patch tokens are fed into the encoder, which consists of several Swin Transformer blocks and patch merging layers to generate the hierarchical feature representations. Patch merging layers are responsible for down-sampling and increasing dimension, while the Swin Transformer blocks are responsible for feature representation learning.

Inspired by U-net, a symmetrical transformer-based decoder is designed. The extracted context features are fused with multiscale features from encoder via skip connections to complement the loss of spatial information caused by down-sampling. In contrast to patch merging layer, a patch expanding layer is specially designed to perform up-sampling. The patch expanding layer reshapes feature maps of adjacent dimensions into a large feature map with 2x up-sampling of resolution. After up-sampling a final linear projection layer is applied to output the pixel-level segmentation predictions.
